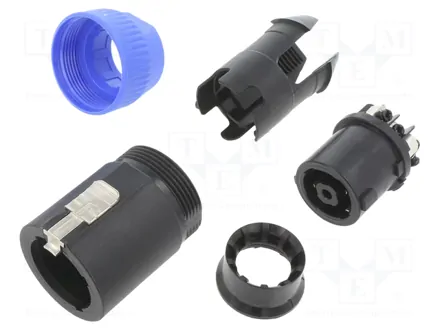

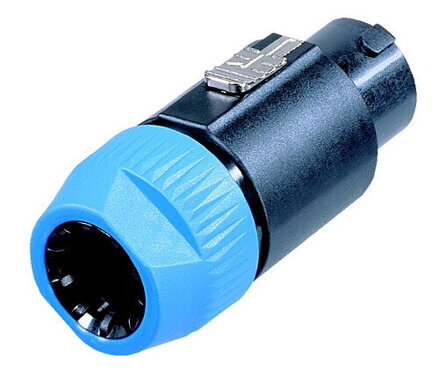

Neutrik NL8FC speakon konektor 8-pin

Product
Title NL8FC
Connection Type speakON
Gender female
Electrical
Contact resistance ≤ 3 mΩ (inner) (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 30 A rms continuous
Rated current per contact 40 A audiosignal, duty cycle 50 %
Rated voltage 250 V (Insulation)
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Cable O.D. 8 - 20 mm
Cable retention ≥ 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wiresize 4 mm²
Wiresize 12 AWG
Wiring screw type terminals or soldering
Locking device Quick Lock (latch)
Material
Contact plating 4 µm Ag
Contacts Brass (CuZn39Pb3)
Insert PBTP 20 % GR
Locking element Zinc diecast (ZnAl4Cu1)
Shell Polyamide (PA 6 30 % GR) black
Strain relief Polyacetal (POM)
Environmental
Flammability UL 94 HB
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
